Difference between Star Schema and Snowflake Schema
Overview
Star Schema and Snowflake Schema are critical in data modelling, yet they have unique qualities. The Star Schema has a simple form with a core fact table surrounded by dimension tables. This constellation-like architecture encourages fast query performance, making it suitable for business analytics. The Snowflake Schema, takes a more complicated path. Here data is normalized which results in less repetition but potentially more complex searches. While the Star Schema excels in simplicity and query speed, the Snowflake Schema excels at space conservation via normalization.
What is a Star Schema?
A star schema is a cornerstone for effective data organization and analysis in data warehousing. Consider it a celestial constellation—elegant and wise.
At its heart, a star schema is a database architecture used to create data warehouses. When visualized, it has a core fact table surrounded by dimension tables, forming a star. The fact table contains the essential performance metrics, while the dimension tables provide context. This configuration allows for faster querying by reducing the need for complicated joins and optimizing query speed.

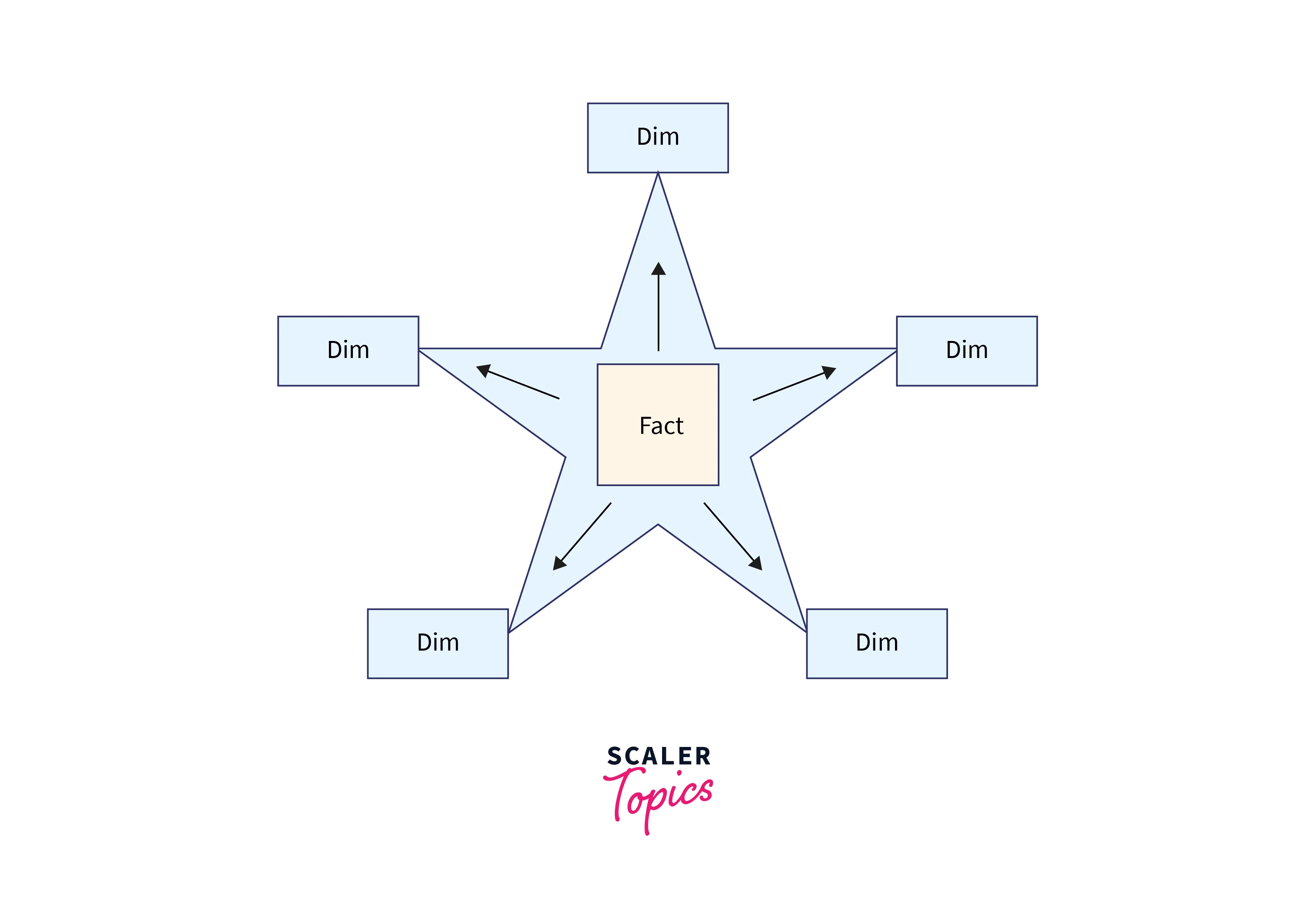

Illustrating the Star

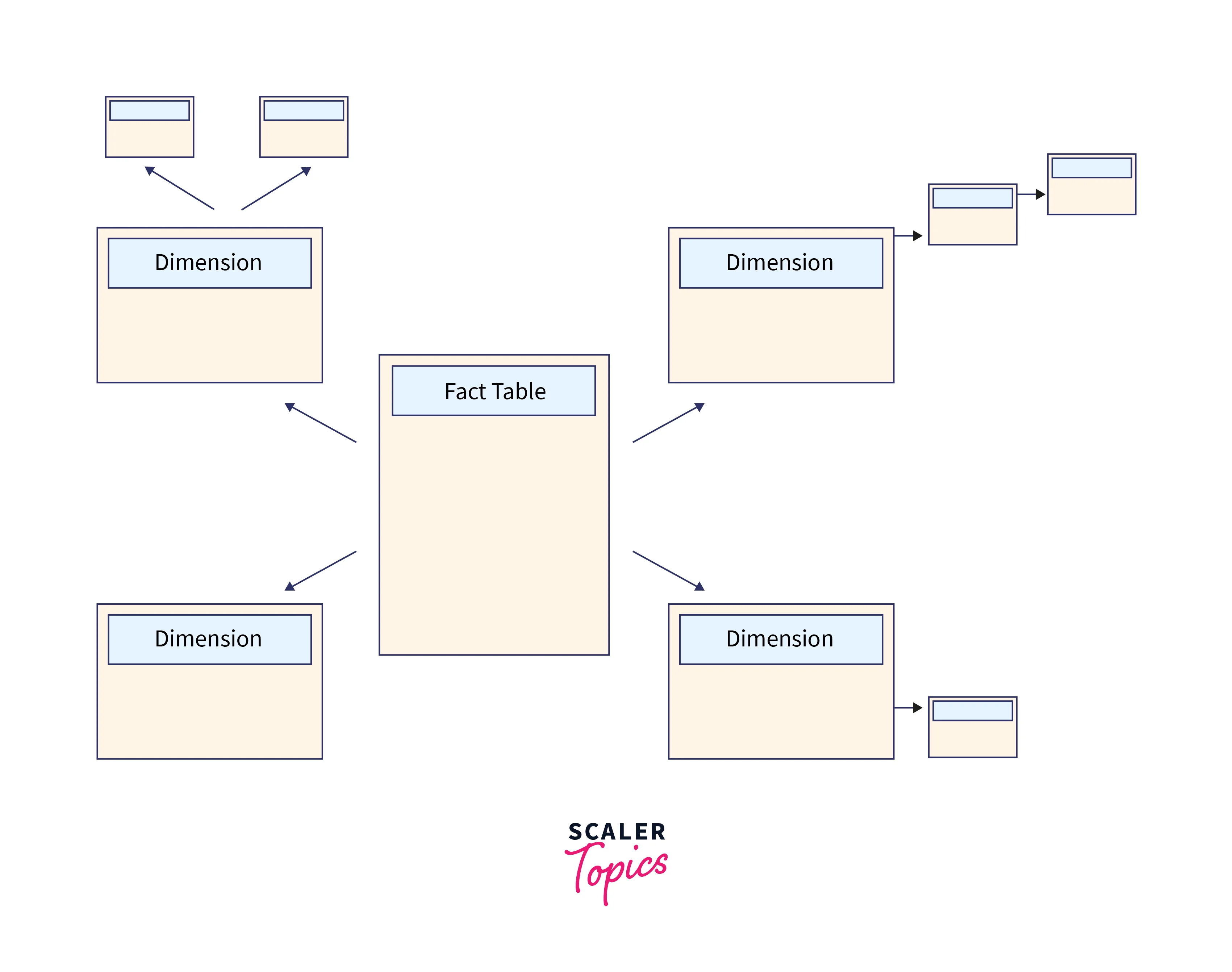

What is a Snowflake Schema?
The Snwoflake schea is a data warehousing that combines efficient storage and query performance for effective data warehousing. The Snowflake Schema is a data warehousing strategy for organizing data to facilitate fast querying and reporting. Consider it a snowflake-like branching structure where data is organized into numerous tiers of normalized tables. This approach reduces data redundancy while optimizing storage.
A primary fact table in a Snowflake Schema holds critical business KPIs, whereas dimension tables branch out and store associated information.
The strength of the Snowflake Schema is its ability to minimize storage space by avoiding data duplication. However, retrieving data in this format frequently necessitates more sophisticated joins between databases, which might have little impact on speed.
Key Difference Between Star Schema and Snowflake Schema
Star Schema and Snowflake Schema are two common database design techniques, each with its own properties. The Star Schema is straightforward, with a core fact table linked to dimension tables. This configuration provides fast queries, although duplication may creep into dimension data. On the other hand, the Snowflake Schema refines this by normalizing dimension tables, reducing redundancy, and improving data integrity. However, extra joins may increase query complexity. In a word, select Star for simplicity and efficiency and Snowflake for normalized, resilient data. Your selection is based on balancing these trade-offs depending on the requirements of your project.
Difference Between Star Schema and Snowflake Schema
Star Schema and Snowflake Schema are two prominent ways of organizing data for efficient analysis, each with advantages.
| Aspect | Star Schema | Snowflake Schema |
|---|---|---|
| Structure | Centralized structure with a fact table connected to dimension tables directly. | Extended version of the Star Schema, with dimension tables normalized into sub-dimensions. |
| Normalization | Less normalized, redundant data due to denormalized dimensions. | More normalized, reduces redundancy by breaking down dimensions. |
| Query Performance | Generally faster query performance due to fewer joins. | May involve more joins, potentially affecting query speed. |
| Maintenance | Easier to maintain since there are fewer tables and joins. | Requires more attention due to additional tables and relationships. |
| Storage Efficiency | Consumes more storage due to denormalized data. | More storage efficiency due to the normalized structure. |
| Use Case | Well-suited for simpler business logic and faster queries. | Ideal for complex business logic requiring normalized data. |
Conclusion
- Star Schema stands out for its simple structure. Its center fact table is surrounded by dimension tables, allowing for rapid and easy searches.
- The Snowflake Schema is a normalized data warehouse design where dimension tables are further normalized into sub-dimension tables, reducing data redundancy.
- Star Schema tends to provide quicker query performance with denormalized dimensions since it involves fewer joins.
- The Snowflake schema is well-suited for highly regulated businesses where data correctness and consistency are critical.
- The snowflake schema can be used when data warehouse optimization is a priority, as it normalizes dimensions to reduce redundancy and improve storage efficiency.
